Novinka:Microchip: Nové rodiny MCU
(Kategória: Semiconductor-ZONE)
Zaslal EdizonTN
20.11.2009-09:48

Spoločnosť Microchip uviedla nové MCU z rodiny PIC24FJ64GA104 a PIC24FJ64GB004.

Obe rodiny PIC24F disponujú nanoWatt XLP extreme low power technológiou, malým púzdrom, a mTouch kapacitným snímaním.

Vlastnosti rodiny PIC24FJ64GA104

• Up to 16 MIPS performance

• 16 x 16 Hardware Multiply, Single Cycle Execution

• 32-bit x 16-bit Hardware Divider

• C Compiler Optimized Instruction Set

• Internal oscillator support – 31 kHz to 8 MHz, up to 32 MHz with 4X PLL

• On-chip LDO Voltage Regulator

• JTAG Boundary Scan and Flash Memory Program Support

• Fail-Safe Clock Monitor – allows safe shutdown if clock fails

• Watchdog Timer with separate RC oscillator

• Run, Idle and Sleep modes

• Deep sleep mode for lowest current consumption

• Multiple, Switchable Clock Modes for Optimum Performance and Power Management

• 10-bit ADC, 13 channels, 500k samples per second

• 3 analog comparators

• 2 UART Modules with LIN and IrDA support, 4 Deep FIFO

• 2 SPI Modules with 8 Deep FIFO

• 2 I2C Modules with Master and Slave Modes

• Five 16-bit Timer Modules

• Up to 5 Input Capture and 5 Output Compare / PWM, all with dedicated timers

• Hardware RTCC, Real-Time Clock Calendar with Alarms

• PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data

• Peripheral Pin Select for remapping digital peripherals to I/O

• Charge Time Measurement Unit (CTMU) for capacitive touch interface


Vlastnosti rodiny PIC24FJ64GB004 USB

• USB v2.0 On-the-Go compliant

• Dual role capable, can act as either Host or Device

• Low Speed(1.5Mb/s) and Full Speed(12 Mb/s) operation in Host mode

• Full speed USB operaton in Device mode

• Supports 32 endpoints

• On-chip USB transceiver

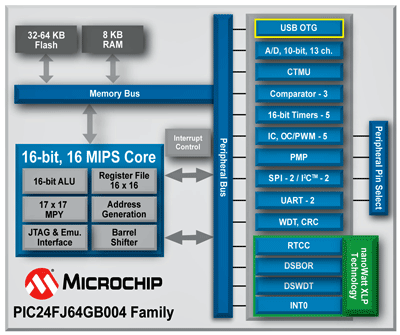

Blokové zapojenie rodiny PIC24FJ64GB004


Odkazy
PIC24FJ64GA104 Family Data Sheet
PIC24FJ64GB004 Family Data Sheet
PIC24FJ64GA104 Homepage
PIC24FJ64GB004 Homepage

Cena, dostupnosť
Cena začína od 2,12 USD (@10k ks) pre rodinu PIC24FJ64GA104, a
od 2,32 USD (@10k ks) pre PIC24FJ64GB004 USB rodinu.
Všetci predstavitelia týchto rodín, by už mali byť dostupný ako vzorky.
