Novinka:ST: STM8S001J3 - prťavý STM8 mikrokontrolér...
(Kategória: Semiconductor-ZONE)
Zaslal EdizonTN
10.08.2017-08:50

STMicroelectronics dalo do obehu 8-pinový (SOIC8), 8-bitový MCU 16MHz mikrokontrolér za 20 centov (USD @10k ks).

Vlastnosti
  • Core
    • 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
    • Extended instruction set

  • Memories
    • Program memory: 8 Kbytes Flash memory; data retention 20 years at 55 °C after 100 cycles
    • RAM: 1 Kbyte
    • Data memory: 128-byte true data EEPROM; endurance up to 100 k write/erase cycles

  • Clock, reset and supply management
    • 2.95 V to 5.5 V operating voltage
    • Flexible clock control, 3 master clock sources
      • External clock input
      • Internal, user-trimmable 16 MHz RC
      • Internal low- power 128 kHz RC

    • Clock security system with clock monitor
    • Power management
      • Low- power modes (wait, active-halt, halt)
      • Switch-off peripheral clocks individually
      • Permanently active, low-consumption power-on and power-down reset

  • Interrupt management
    • Nested interrupt controller with 32 interrupts
    • Up to 5 external interrupts

  • Timers
    • Advanced control timer: 16-bit, 2 CAPCOM channels, 2 outputs, dead-time insertion and flexible synchronization
    • 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
    • 8-bit basic timer with 8-bit prescaler
    • Auto wakeup timer
    • Window and independent watchdog timers

  • Communications interfaces
    • UART, SmartCard, IrDA, LIN master mode
    • SPI unidirectional interface up to 8 Mbit/s (master simplex mode, slave receiver only)
    • I2C interface up to 400 Kbit/s

  • Analog to digital converter (ADC)
    • 10-bit ADC, ± 1 LSB ADC with up to 3 multiplexed channels, scan mode and analog watchdog

  • I/Os
    • Up to 5 I/Os including 4 high-sink outputs
    • Highly robust I/O design, immune against current injection

  • Development support
    • Embedded single-wire interface module (SWIM) or fast on-chip programming and non-intrusive debugging

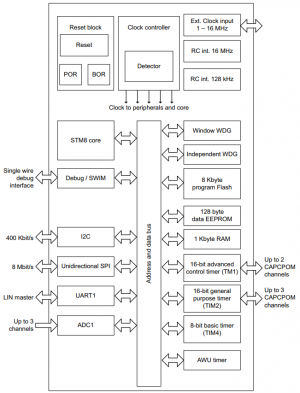

Blokové zapojenie



Cena
Podľa ST, je cena za 10k ks len 0.20 USD


Odkazy
Homepage
Datasheet


Distribúcia
viď. Adresár
