Vývojové dosky STM32 DISCOVERY predstavujú strednú vrstvu vývojových dosiek pre mcu rodiny STM32. Prinášame obrazový prehľad všetkých týchto dosiek.

Prehľad je zoradený viac-menej podľa "výkonnosti" jednotlivých rodín, ku ktorým dosky patria.

Kým pri nižších radoch predstavujú DISCOVERY dosky vhodný základ pre experimenty so samotnou doskou a aj pomerne ľahkú možnosť použiť ju ako základ konštrukcie vďaka vyvedeniu väčšiny až všetkých pinov na pripojovacie konektory ("hrebene"), dosky z vyšších radov (najmä tie s veľkými LCD displejmi) sú častokrát vhodné len na demonštráciu periférií a pripojených obvodov prítomných na doske, pričom voľných pinov na pripojovacích konektoroch zostáva len málo.

Objednávacie označenia aj ceny sú uvedené vždy podľa tabuľky na spodnej časti stránky produktu u ST v čase vytvárania tabuľky; oboje sa môže v čase meniť a označenie aj cena u distribútorov sa môžu líšiť. Niektoré dosky majú viac (obvykle evolučných) variánt, ak nie je nejaká varianta uvedená v spodnom riadku s cenou, tak sa už oficiálne nepredáva (avšak distribútori ju ešte môžu mať a môžu si ju mýliť s novšou verziou).

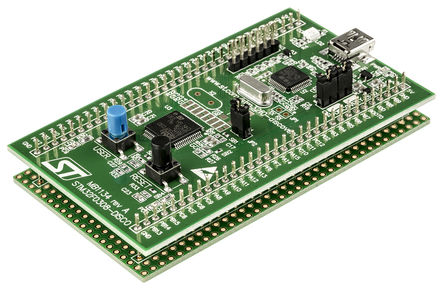

32F0308DISCOVERY
  • STM32F030R8T6 - 64 KB FLASH, 8 KB SRAM, LQFP64
  • ST-LINK/V2
  • user: 2x LED, 1x button
  • bonus: additional prototyping board
  • STM32F0308-DISCO $8.70

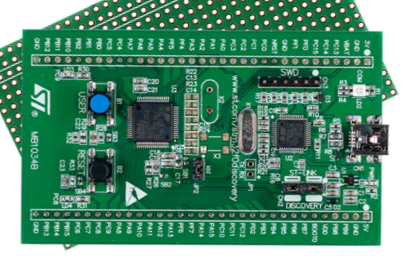

STM32F0DISCOVERY
  • STM32F051R8T6 - 64 KB FLASH, 8 KB SRAM, LQFP64
  • ST-LINK/V2
  • user: 2x LED, 1x button
  • bonus: additional prototyping board
  • STM32F0DISCOVERY $8.70

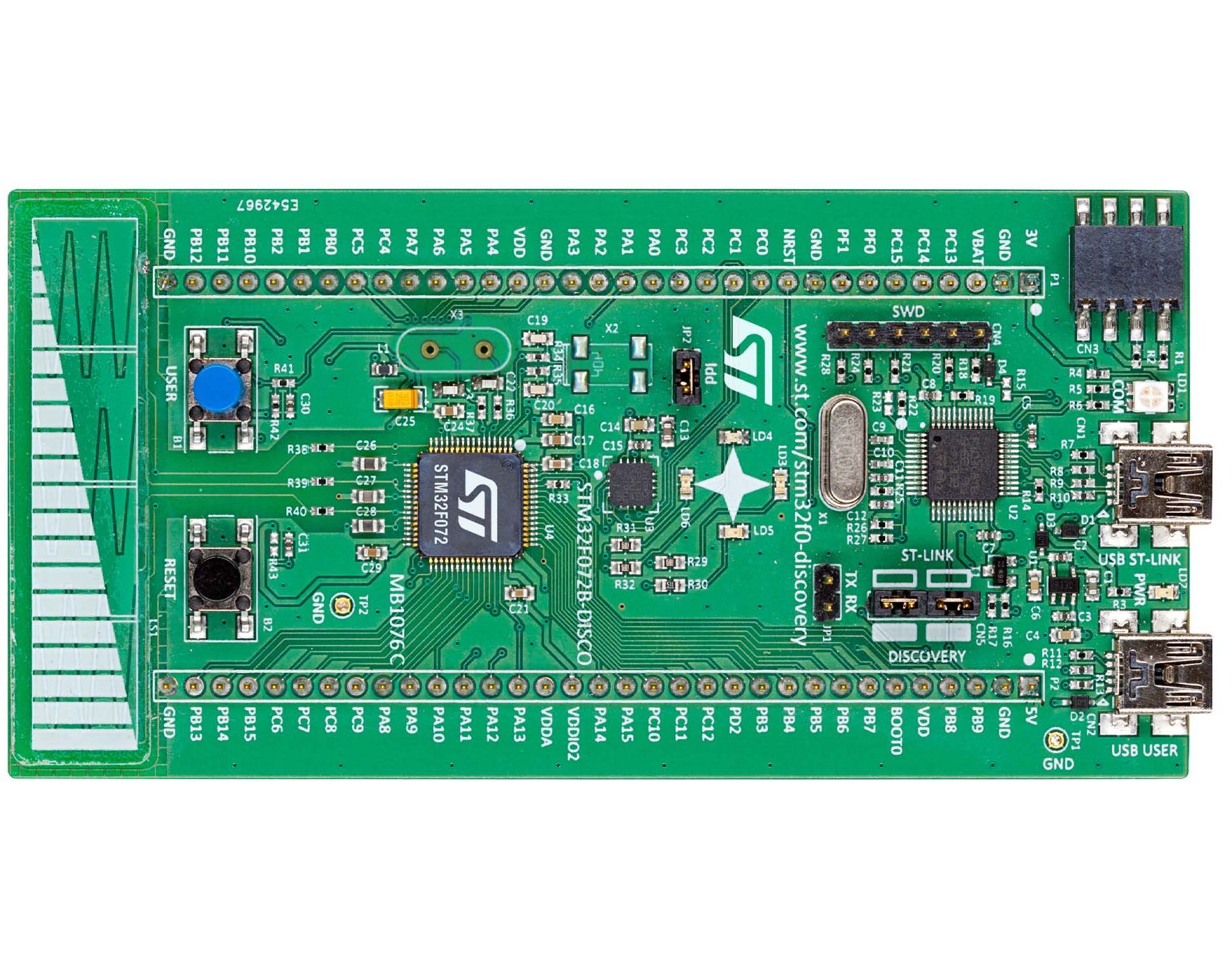

32F072BDISCOVERY
  • STM32F072RBT6 - 128 KB FLASH, 16 KB SRAM, LQFP64
  • ST-LINK/V2
  • user: 4x LED, 1x button
  • 1x linear touch sensor/ 4x touchkeys
  • User USB with Mini-B connector
  • L3GD20 ST MEMS motion sensor 3-axis digital output gyroscope
  • RF EEPROM daughterboard connector
  • STM32F072B-DISCO $10.42

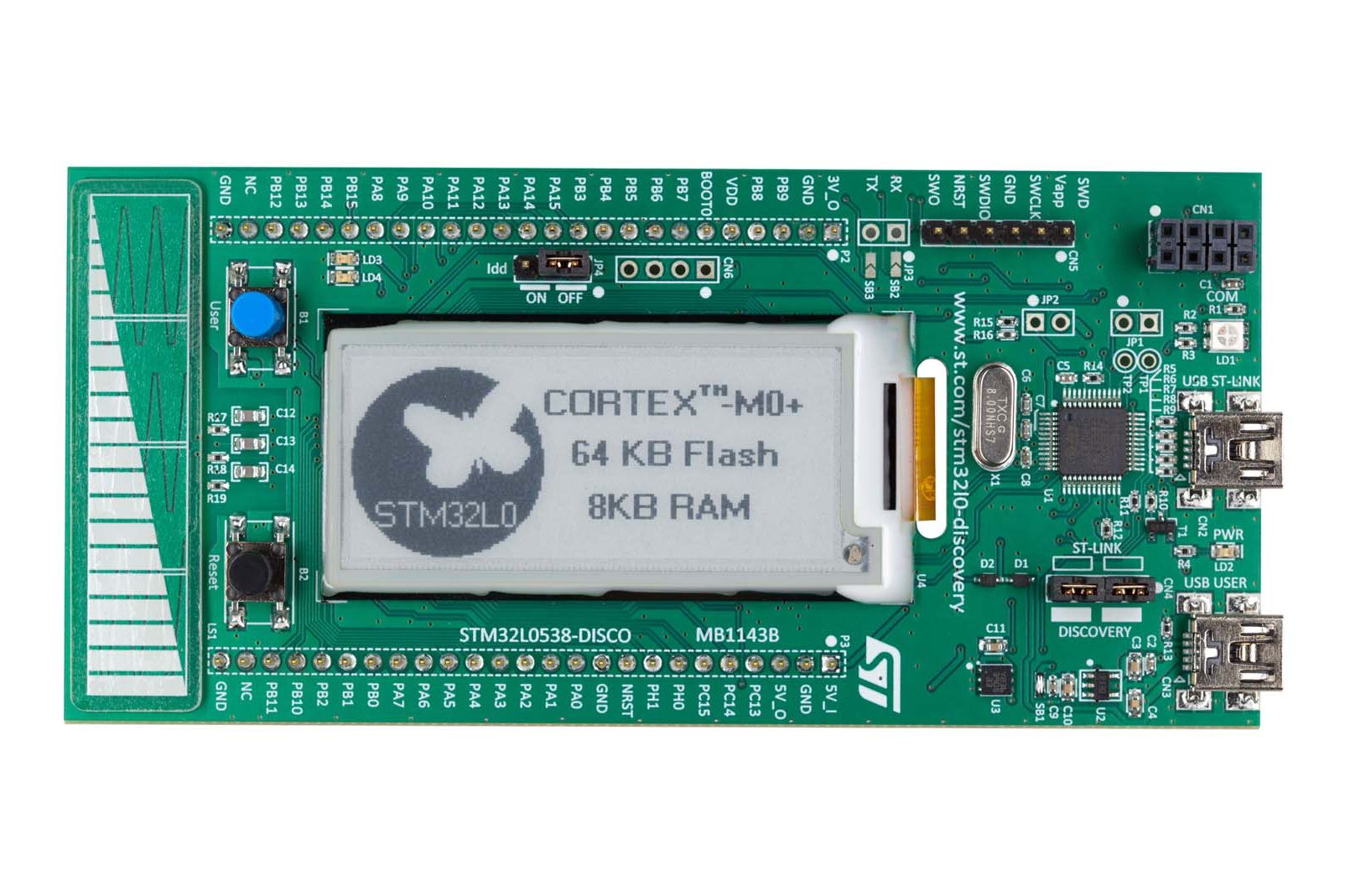

32L0538DISCOVERY
  • STM32L053C8T6 - 64 KB FLASH, 8 KB SRAM, LQFP48
  • ST-LINK/V2-1 (debug + mbed-enabled/MSD + VCP)
  • user: 2x LED, 1x button
  • 2.04” E-paper display, 172x72 pixels
  • 1x linear touch sensor/ 4x touchkeys
  • User USB with Mini-B connector
  • IDD current measurement with slave STM32
  • RF EEPROM daughterboard connector
  • STM32L0538-DISCO $22.91
STM32VLDISCOVERY
  • STM32F100RBT6B - 128 KB FLASH, 8 KB SRAM, LQFP64
  • ST-LINK (V1)
  • user: 2x LED, 1x button
  • 8MHz + 32kHz Xtal
  • STM32VLDISCOVERY $9.68

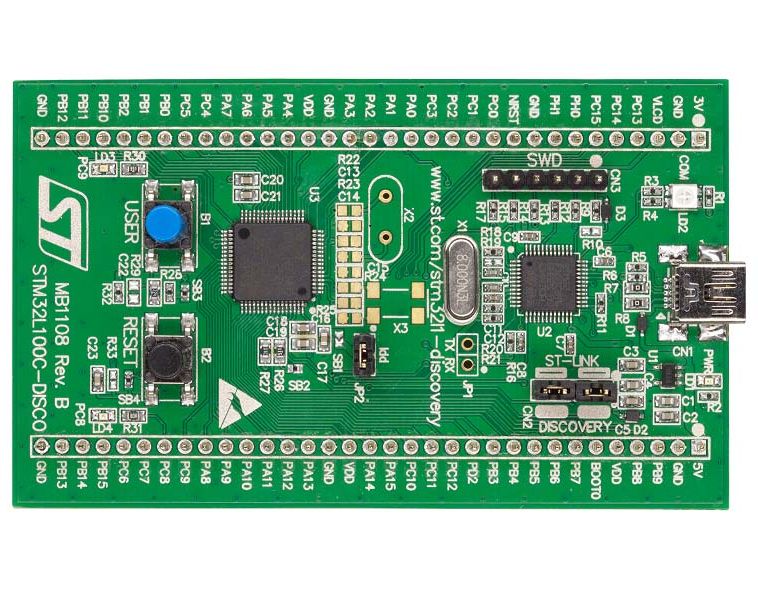

32L100CDISCOVERY
  • STM32L100RCT6 - 256 KB FLASH, 16 KB SRAM, LQFP64
  • ST-LINK/V2
  • user: 2x LED, 1x button
  • STM32L100C-DISCO $7.72
STM32L-DISCOVERY
  • STM32L152RBT6 - 128 KB FLASH, 16 KB SRAM,4 KB EEPROM LQFP64

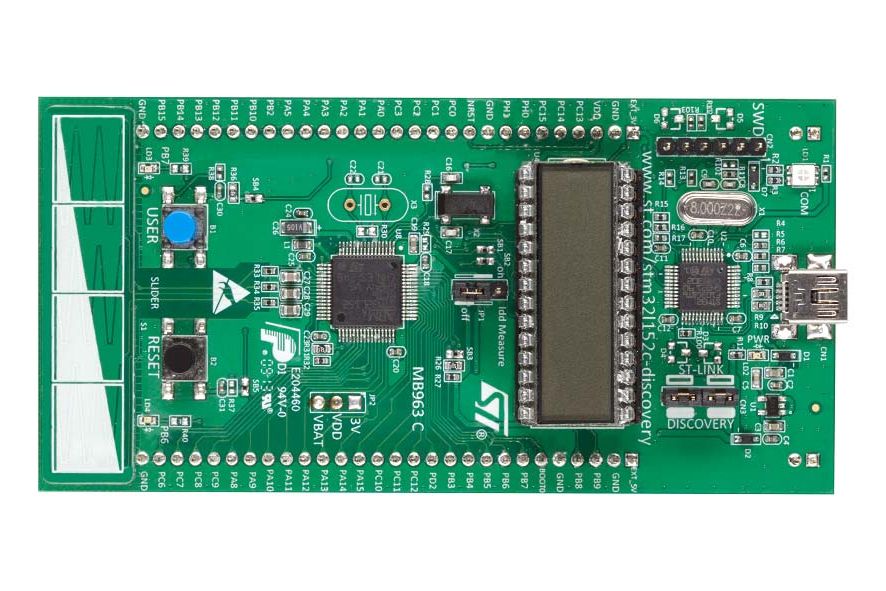

32L152CDISCOVERY

  • STM32L152RCT6 - 256 KB FLASH, 32 KB SRAM,8 KB EEPROM LQFP64
  • ST-LINK/V2
  • user: 2x LED, 1x button
  • LCD (6 x 14-segment + bar, DIP28 package, socketed)
  • 1x linear touch sensor/ 4x touchkeys
  • IDD current measurement (using capacitor "memory"/opamp)
  • 32kHz Xtal
  • STM32L152C-DISCO $12.25

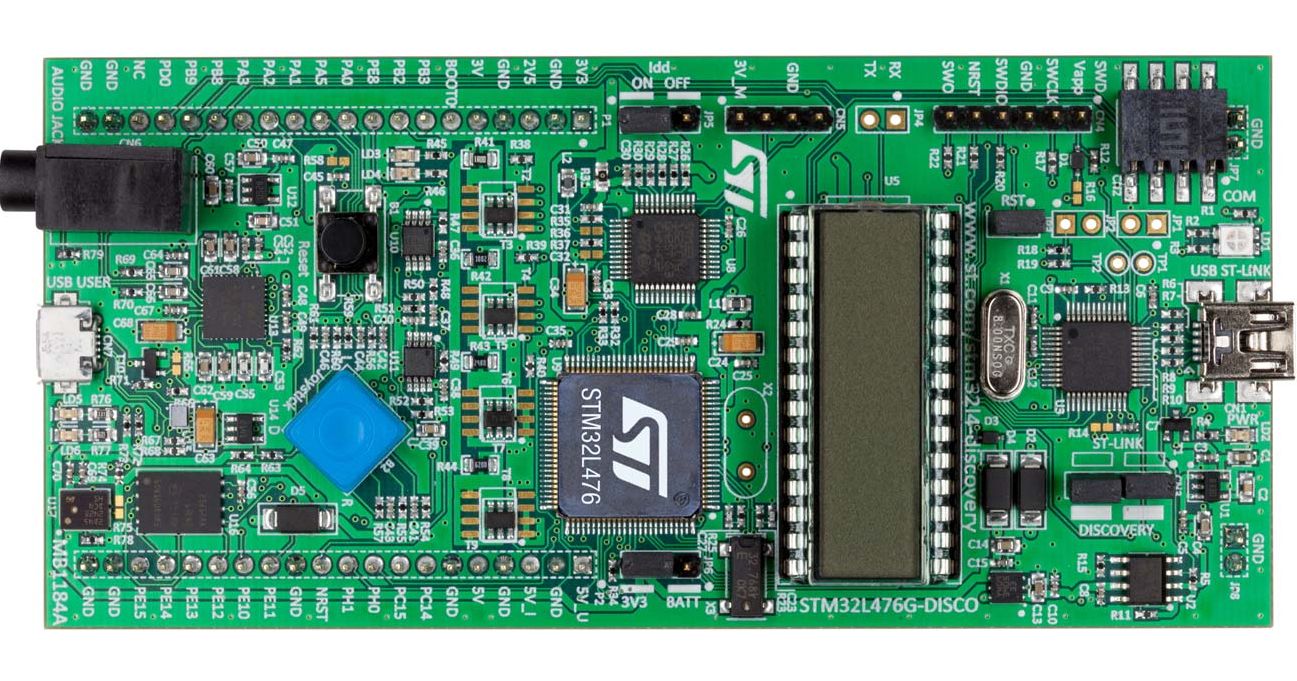

32L476GDISCOVERY
  • STM32L476VGT6 - 1 MB FLASH, 128 KB SRAM, LQFP100
  • ST-LINK/V2-1 (mbed-enabled, debug+VCP+MSD)
  • user: 2x LED, joystick
  • LCD (6 x 14-segment + bar, DIP28 package, socketed)
  • 128-Mbit Quad-SPI NOR Flash
  • USB OTG FS with micro-AB connector
  • CS43L22, audio DAC with integrated class D speaker driver (I2S through SAI)
  • MP34DT01 MEMS digital microphone
  • L3GD20 ST MEMS three-axis digital output gyroscope
  • LSM303C ST MEMS 3D accelerometer and 3D magnetometer module
  • IDD current measurement with slave STM32
  • CR2032 battery holder (battery not provided)
  • RF EEPROM daughterboard connector
  • STM32L476G-DISCO $19.48

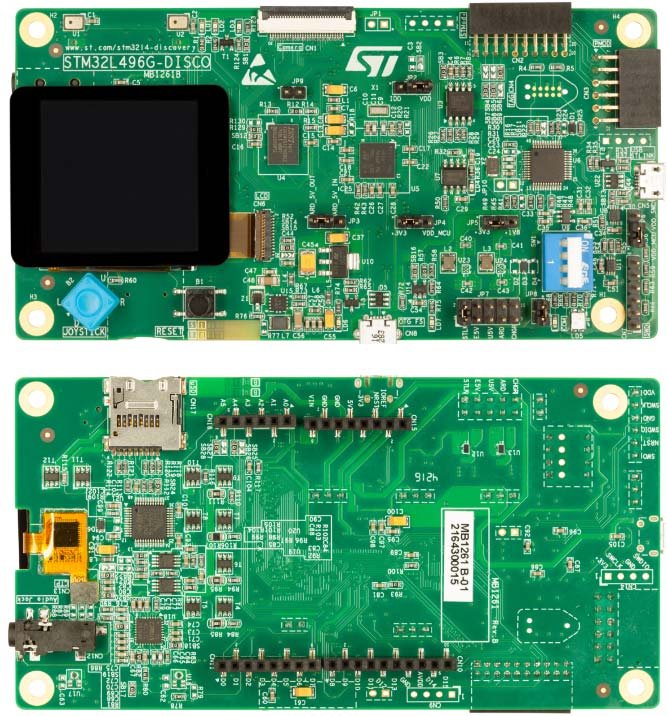

32L496GDISCOVERY
  • STM32L496AGI6 - 1 MB FLASH, 320 KB SRAM, UFBGA169
  • ST-LINK/V2-1 (mbed-enabled, debug + VCP + MSD)
  • user: 8x LED, joystick
  • 1.54" 240x240 pixel TFT color LCD with parallel interface
  • 8-Mbit PSRAM
  • 64-Mbit Quad-SPI NOR Flash
  • USB OTG FS with micro-AB connector
  • MicroSD™ card connector (card included)
  • Two on-board ST- MEMS microphones
  • SAI audio CODEC (stereo headset jack including analog microphone input)
  • Compatible with Arduino™ Uno revision 3 connectors
  • STMod+ and PMOD connectors
  • Camera 8-bit connector
  • IDD measurement
  • STM32L496G-DISCO $70 $73.50

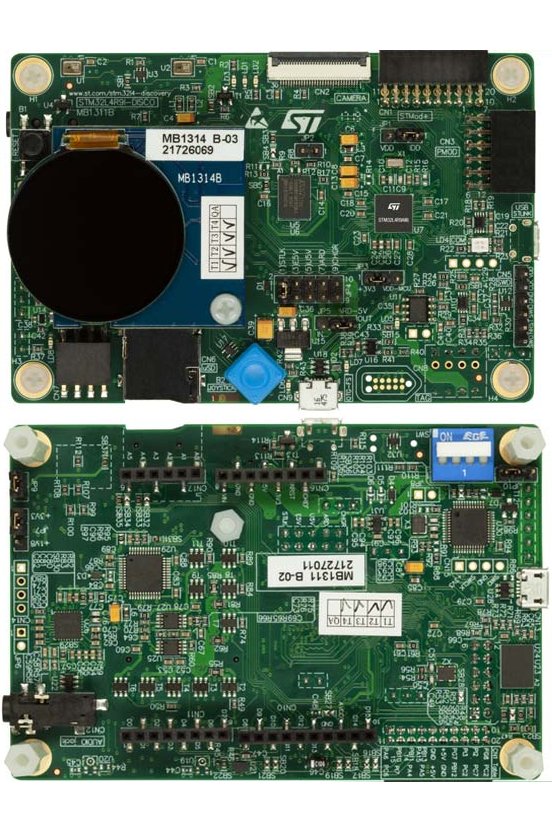

32L4R9IDISCOVERY
  • STM32L4R9AII6 - 2 MB FLASH, 640 KB SRAM, UFBGA169
  • ST-LINK/V2-1 (mbed-enabled, debug + VCP + MSD)
  • user: 2x LED, reset button, 4-way joystick
  • 1.2" 390x390 pixel AMOLED round display, MIPI ® DSI interface and capacitive touch panel
  • 16-Mbit asynchronous PSRAM
  • 512-Mbit Octo-SPI Flash
  • USB OTG FS with micro-AB connector
  • MicroSD™ card connector
  • 2x MP34DT01TR ST MEMS digital microphone
  • audio codec, 3.5mm jack with stereo output and mic input
  • Compatible with Arduino™ Uno revision 3 connectors
  • 8-bit camera connector
  • STMod+ and PMOD and EXT_I2C connectors
  • STM32L4R9I-DISCO $87.22

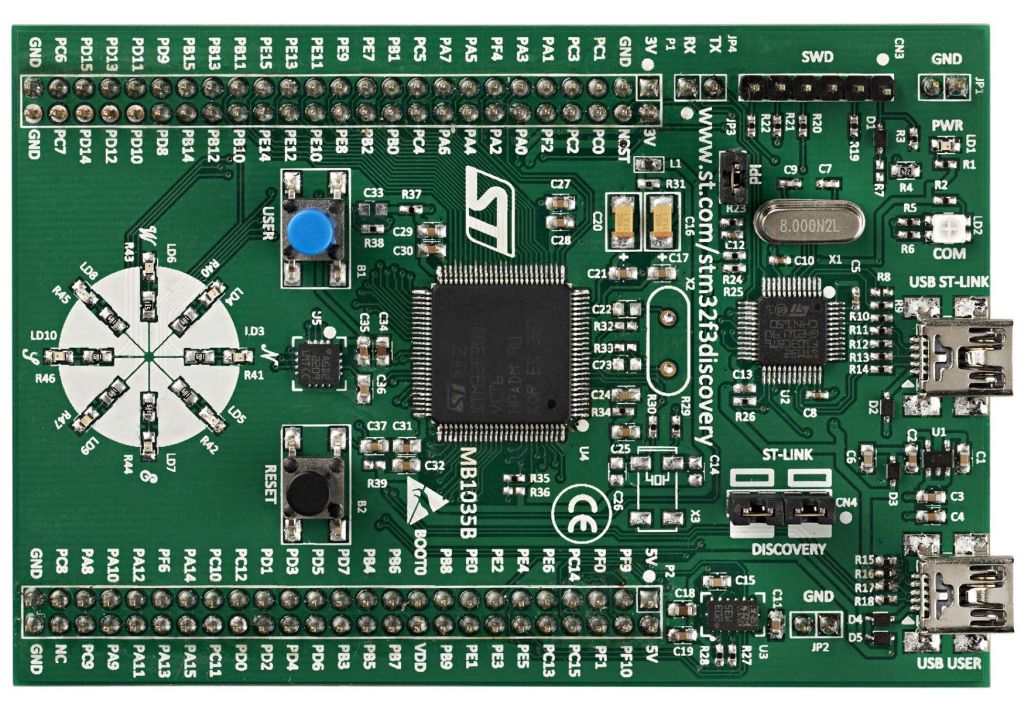

STM32F3DISCOVERY
  • STM32F303VCT6 - 256 KB FLASH, 48 KB SRAM, LQFP100
  • ST-LINK/V2 PCB version A or B, ST-LINK/V2-B (+ VCP + MSD) for PCB version C and newer
  • user: 4x LED, 1x button
  • User USB with Mini-B connector
  • L3GD20 ST MEMS motion sensor 3-axis digital output gyroscope
  • LSM303DLHC ST MEMS system-in-package - 3D digital linear acceleration sensor + 3D digital magnetic sensor
  • STM32F3DISCOVERY $14.70 $10.90

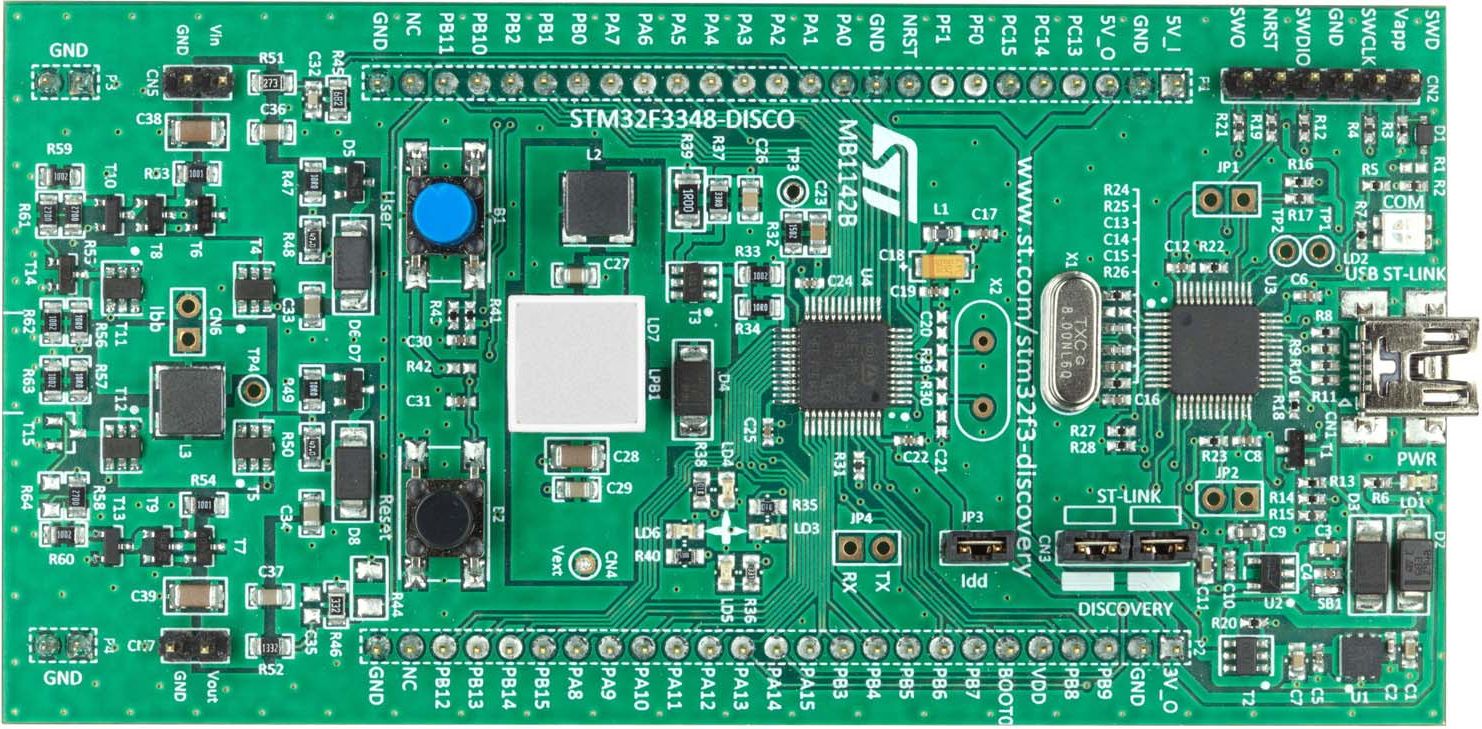

32F3348DISCOVERY
  • STM32F334C8T6 - 64 KB FLASH, 16 KB SRAM, LQFP48
  • ST-LINK/V2-1 (mbed-enabled, debug + VCP + MSD)
  • user: 4x LED + high brightness LED dimming with buck converter, 1x button
  • buck/boost converter
  • STM32F3348-DISCO $16.66

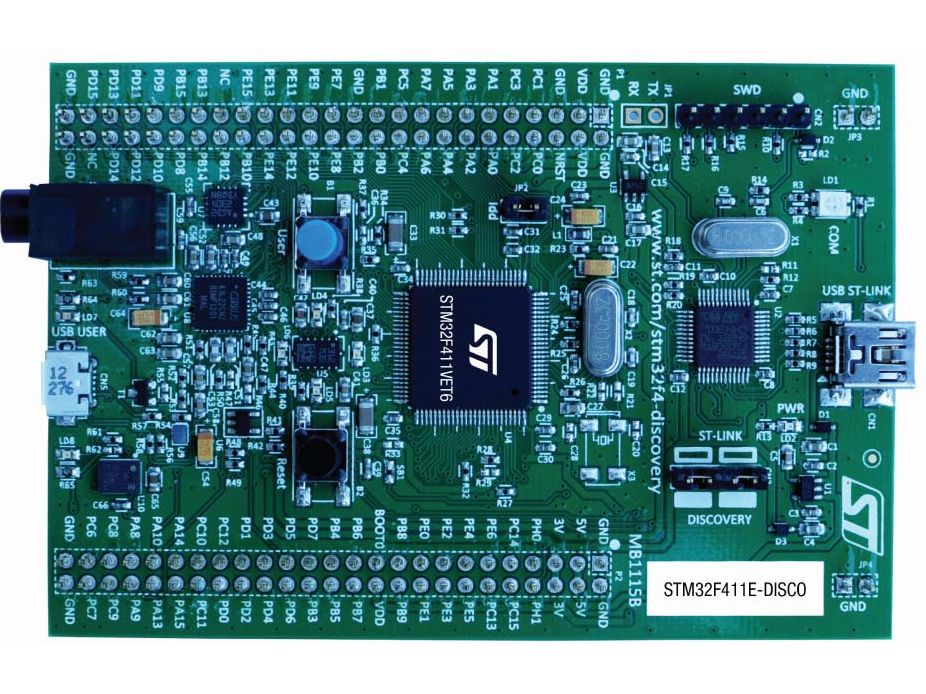

32F411EDISCOVERY
  • STM32F411VET6 - 512 KB FLASH, 128 KB SRAM, LQFP100
  • ST-LINK/V2
  • user: 4x LED, 1x button
  • USB OTG FS with micro-AB connector
  • L3GD20 ST MEMS motion sensor 3-axis digital output gyroscope
  • LSM303DLHC ST MEMS system-in-package - 3D digital linear acceleration sensor + 3D digital magnetic sensor
  • MP45DT02 ST MEMS audio sensor, omnidirectional digital microphone
  • CS43L22, audio DAC with integrated class D speaker driver
  • STM32F411E-DISCO $14.70

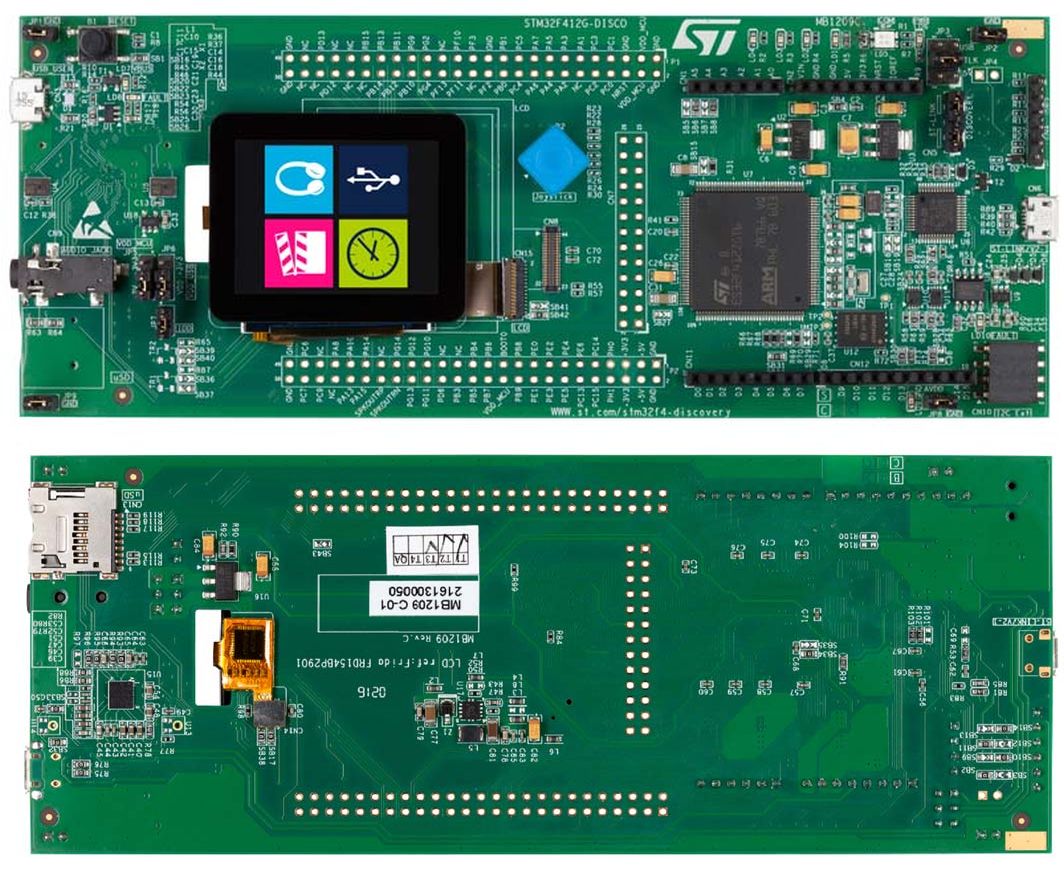

32F412GDISCOVERY
  • STM32F412ZGT6 - 1 MB FLASH, 256 KB SRAM, LQFP144
  • ST-LINK/V2-1 (mbed-enabled, debug + VCP + MSD)
  • user: 4x LED, joystick
  • 1.54 inch 240x240 pixel TFT color LCD with parallel interface and capacitive touchscreen
  • 128-Mbit Quad-SPI NOR Flash
  • USB OTG FS with micro-AB connector
  • MicroSD™ card connector
  • 2x MP34DT01TR ST MEMS digital microphone
  • WM8994, I2S audio CODEC with microphone input and integrated class AB or D speaker driver
  • Compatible with Arduino™ Uno revision 3 connectors
  • RF EEPROM daughterboard connector
  • STM32F412G-DISCO $24.50 $25

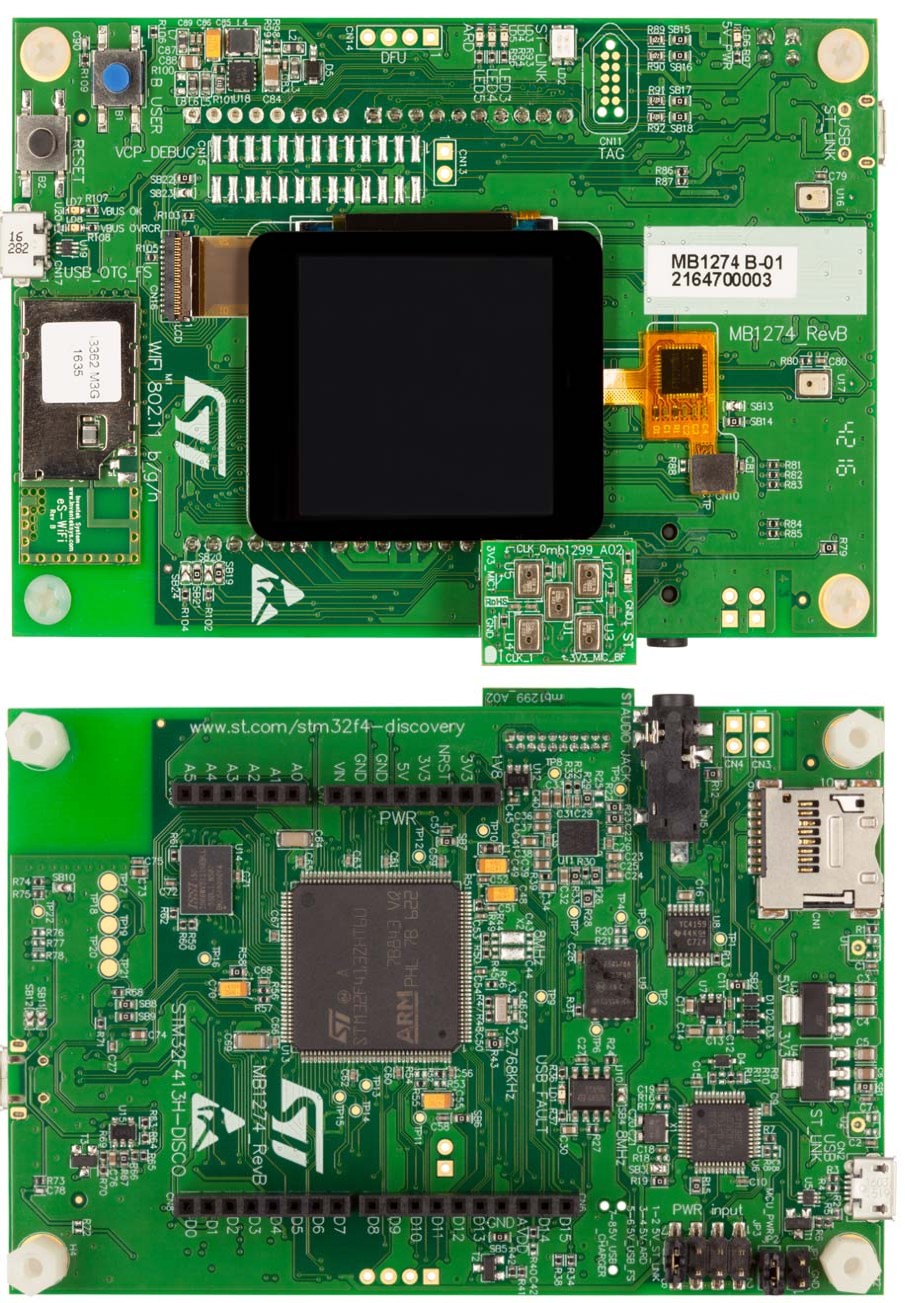

32F413HDISCOVERY
  • STM32F413ZHT6 - 1.5 MB FLASH, 320 KB SRAM, LQFP144
  • ST-LINK/V2-1 (mbed-enabled, debug + VCP + MSD)
  • user: 2x LED, 1xbutton
  • 240x240 pixel TFT color LCD with parallel interface and touch-panel connector
  • 8-Mbit PSRAM; 512K word x 16bits
  • 128-Mbit Quad-SPI NOR Flash
  • USB OTG FS with micro-AB connector
  • MicroSD™ card connector
  • Two on-board ST- MEMS microphones; Connector extension for up to 5- MEMS microphones
  • I2S audio CODEC
  • Compatible with Arduino™ Uno revision 3 connectors
  • Integrated Wi-Fi module 802.11 b/g/n
  • STM32F413H-DISCO $70

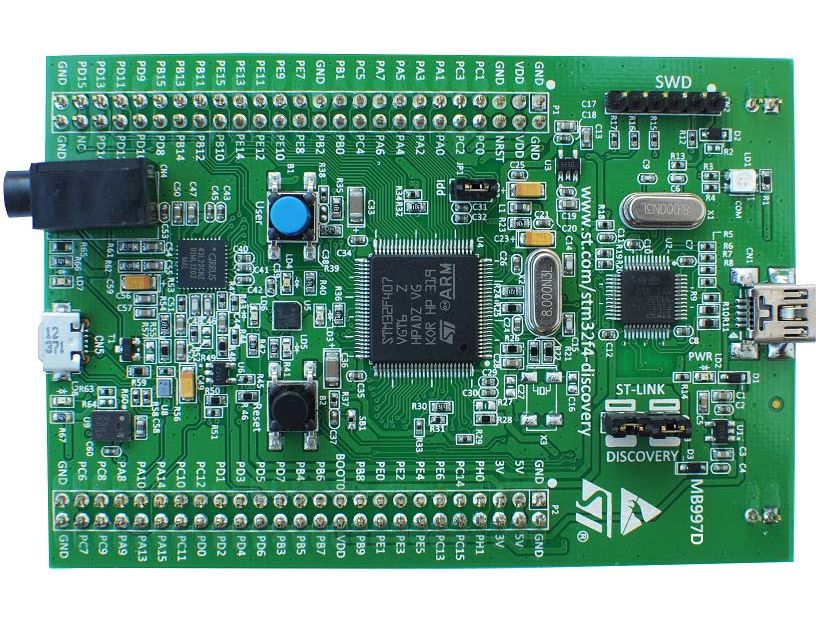

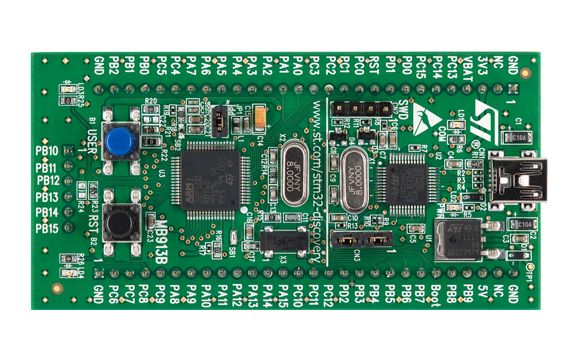

STM32F4DISCOVERY
  • STM32F407VGT6 - 1 MB FLASH, 192 KB SRAM, LQFP100
    • ST-LINK/V2 (old order code STM32F4DISCOVERY)
    • ST-LINK/V2-A (new order code STM32F407G-DISC1) debug+VCP(!jumper wires)+MSD
  • user: 4x LED, 1x button
  • USB OTG FS with micro-AB connector
  • LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
  • MP45DT02 ST MEMS audio sensor, omnidirectional digital microphone
  • CS43L22, audio DAC with integrated class D speaker driver
  • STM32F407G-DISC1 $19.50

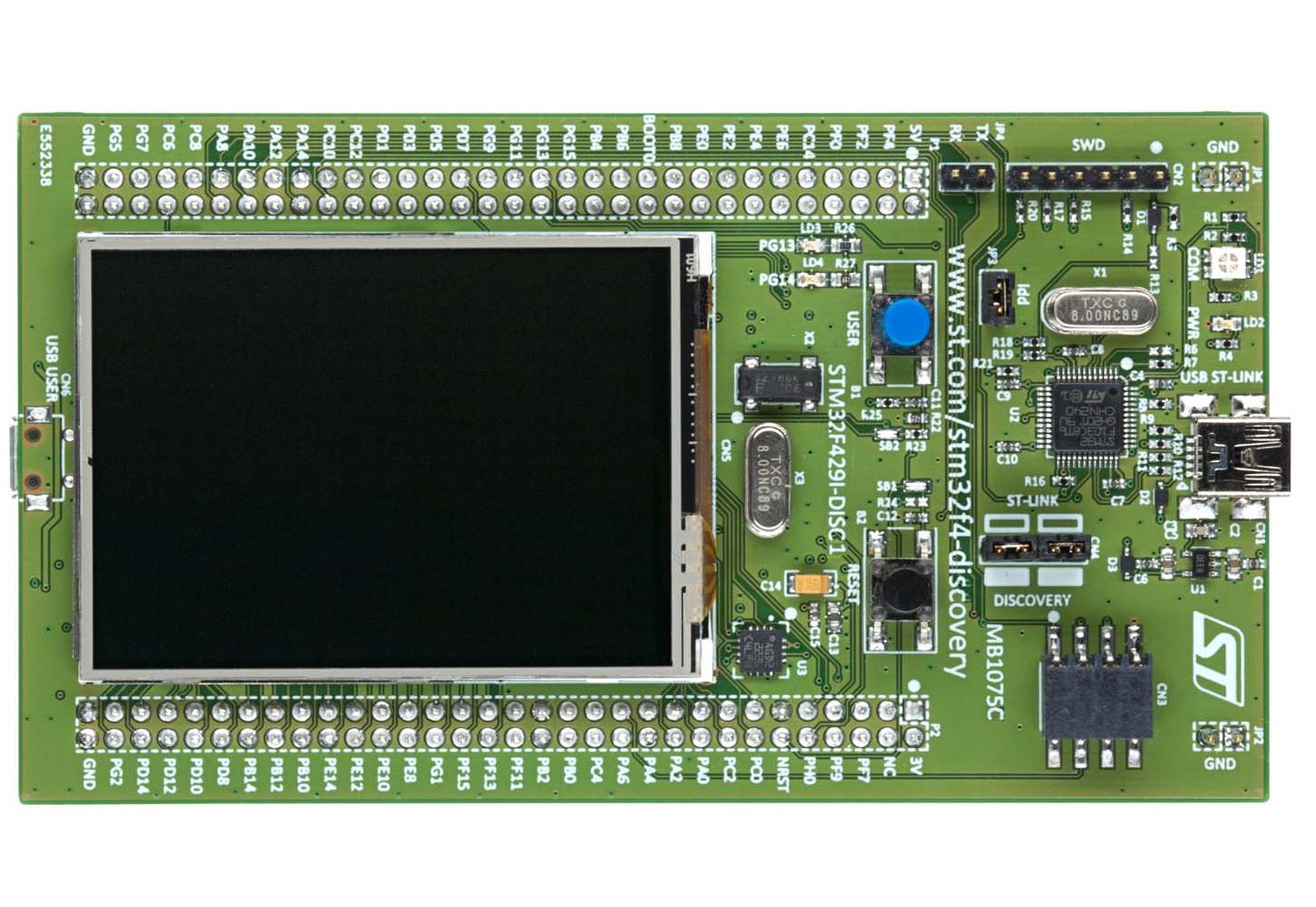

32F429IDISCOVERY
  • STM32F429ZIT6 - 2 MB FLASH, 256 KB SRAM, LQFP144
    • ST-LINK/V2 (old order code STM32F429I-DISCO)
    • ST-LINK/V2-B (new order code STM32F429I-DISC1) debug+VCP+MSD
  • user: 2x LED, 1x button
  • 2.4" QVGA TFT LCD
  • 64-Mbit SDRAM
  • USB OTG FS with micro-AB connector
  • L3GD20, ST- MEMS motion sensor 3-axis digital output gyroscope
  • RF EEPROM daughterboard connector
  • STM32F429I-DISC1 $29.30

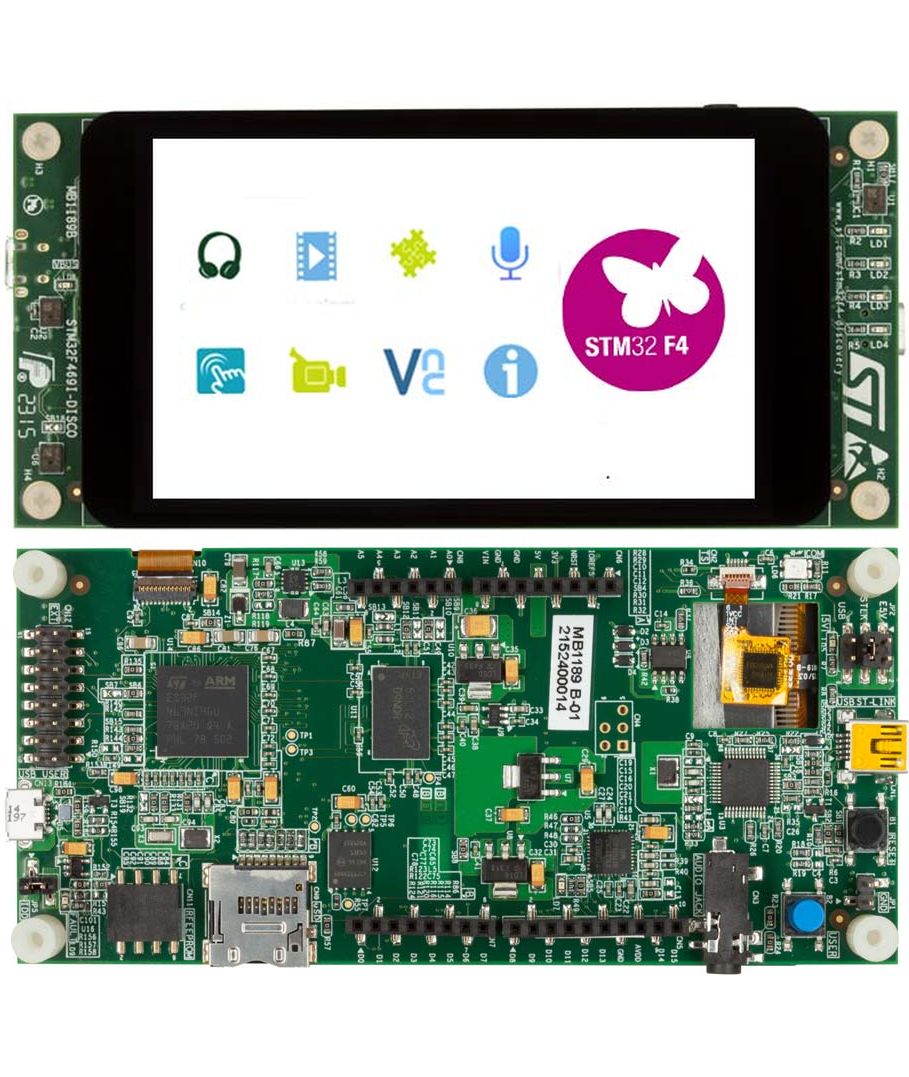

32F469IDISCOVERY
  • STM32F469NIH6 - 2 MB FLASH, 324 KB SRAM, BGA216
  • ST-LINK/V2-1 (mbed-enabled, debug+VCP+MSD)
  • user: 4x LED, 1x button
  • 4" 800x480 TFT with MIPI DSI interface and capacitive touch screen
  • 4Mx32bit SDRAM
  • 128-Mbit Quad-SPI NOR Flash
  • MicroSD card connector
  • USB OTG FS with micro-AB connector
  • CS43L22, audio DAC with integrated class D speaker driver (I2S through SAI)
  • 3x MP34DT01TR MEMS digital microphones
  • RF EEPROM daughterboard connector
  • Arduino ™ UNO V3 connector
  • STM32F469I-DISCO $60.03

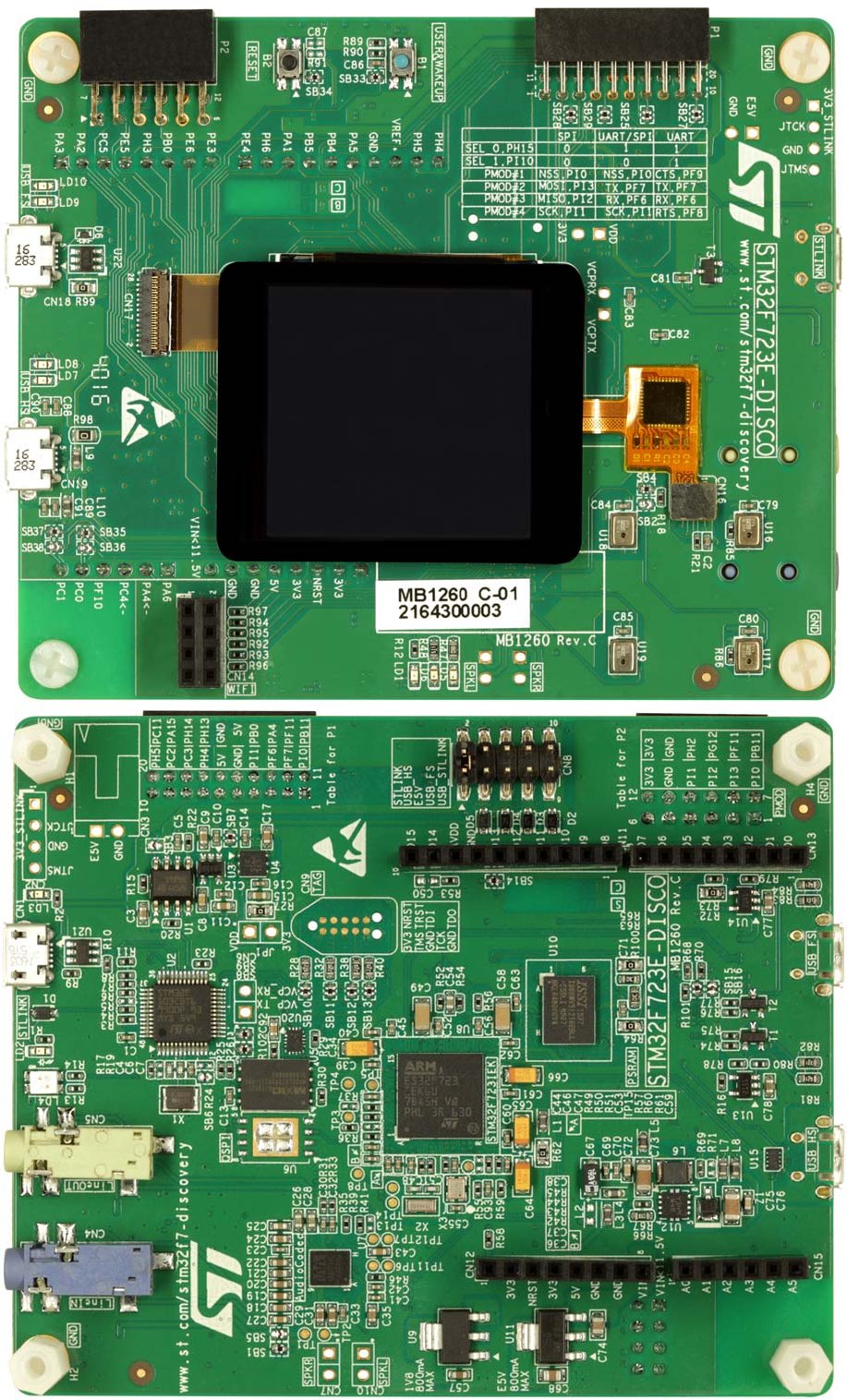

32F723EDISCOVERY
  • STM32F723IEK6 - 512 kB FLASH, 176+16 KB SRAM, BGA176
  • ST-LINK/V2-1 (mbed-enabled, debug + VCP + MSD)
  • user: 3x LED, 1xbutton
  • 240x240 pixel TFT LCD with touch-panel
  • 8-Mbit PSRAM; 512K word x 16bits
  • 512-Mbit Quad-SPI NOR Flash
  • USB OTG HS with micro-AB connector
  • USB OTG FS with micro-AB connector
  • 4 ST- MEMS microphones
  • SAI audio CODEC
  • 3.5mm jack for stereo audio line in, headphones; stereo speaker output
  • Compatible with Arduino™ Uno revision 3 connectors
  • ESP-01 Wi-Fi module connector
  • Fanout board (included) compatible with MikroElektronika Click boards, ESP-01 and Seeed Studio™ Grove modules
  • STMod+ and PMOD connectors
  • STM32F723E-DISCO $18.62 $39

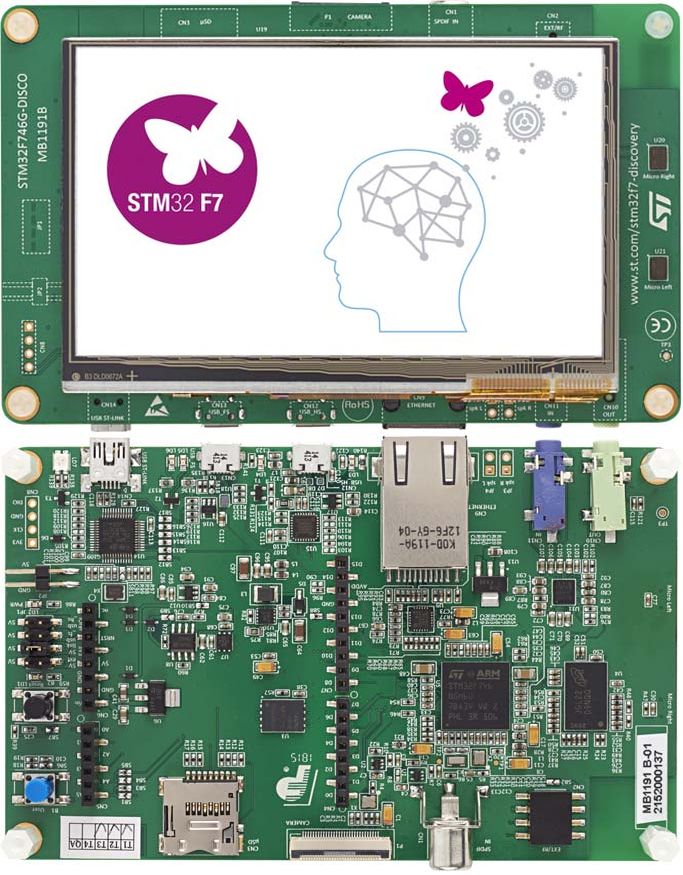

32F746GDISCOVERY
  • STM32F746NGH6 - 1 MB FLASH, 340 KB SRAM, BGA216
  • ST-LINK/V2-1 (mbed-enabled, debug+VCP+MSD)
  • user: 1x LED, 1x button
  • 4.3-inch 480x272 color LCD-TFT with capacitive touch screen
  • 128-Mbit SDRAM (64-MBit accessible)
  • 128-Mbit Quad-SPI NOR Flash
  • 10/100-Mbit Ethernet
  • MicroSD card connector
  • USB OTG FS + USB OTG HS, both with micro-AB connector
  • WM8994 CODEC, I2S through SAI (line in, line out, stereo external speakers)
  • 2xMP34DT01TR MEMS digital microphones (connected to CODEC)
  • SPDIF RCA input connector
  • camera connector, can connect module STM32F4DIS-CAM
  • RF EEPROM daughterboard connector
  • Arduino ™ UNO V3 connector
  • STM32F746G-DISCO $49.00

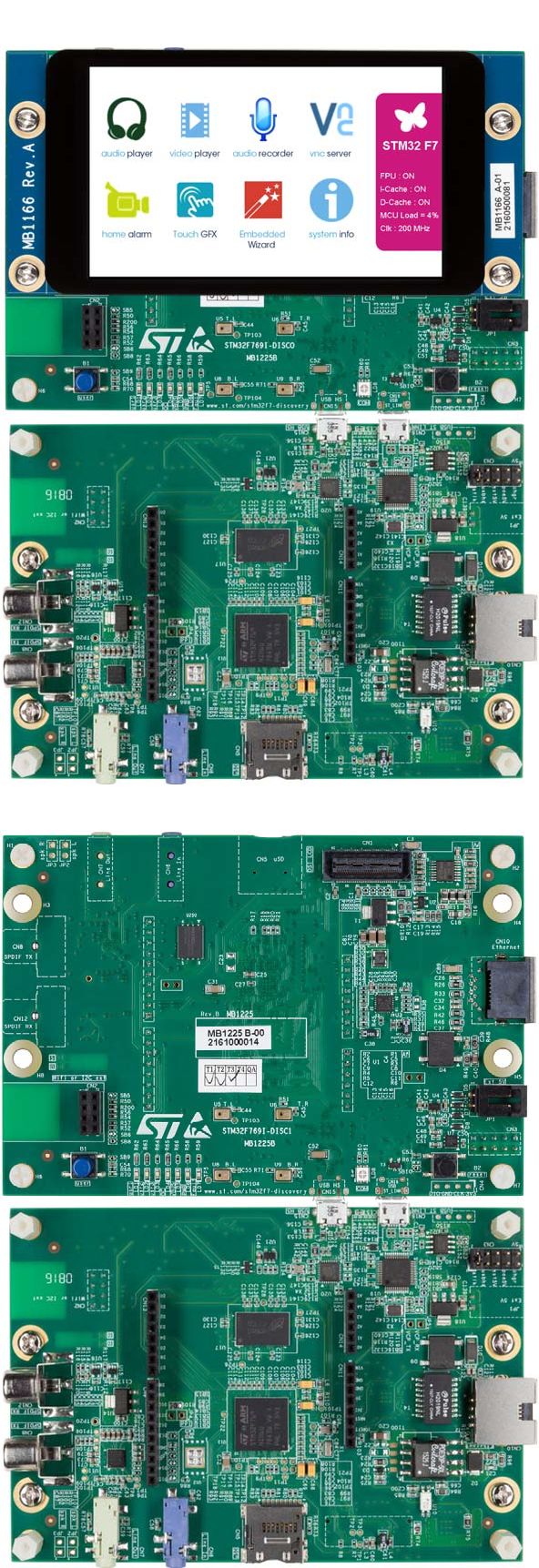

32F769IDISCOVERY
  • STM32F769NIH6 - 2 MB FLASH, 512 KB SRAM, BGA216
  • ST-LINK/V2-1 (mbed-enabled, debug+VCP+MSD)
  • user: 3x LED, 1x button
    • 4" capacitive touch LCD display with MIPI® DSI connector - order code STM32F769I-DISCO
    • without LCD - order code STM32F769I-DISC1
  • 128-Mbit SDRAM
  • 512-Mbit Quad-SPI Flash memory
  • 10/100-Mbit Ethernet
  • Power Over Ethernet based on IEEE 802.3af (Powered Device, 48 V to 5 V, 3 W)
  • MicroSD card connector
  • USB OTG HS with micro-AB connector
  • WM8994 CODEC, I2S through SAI (line in, line out, stereo external speakers)
  • 4xMP34DT01TR MEMS digital microphones
  • 2x SPDIF (1x input/1x output) RCA connector
  • RF EEPROM (or WiFi - non-ST order code ESP8266-01) daughterboard connector
  • Arduino ™ UNO V3 connector
    • STM32F769I-DISCO $77.42
    • STM32F769I-DISC1 $48.02
